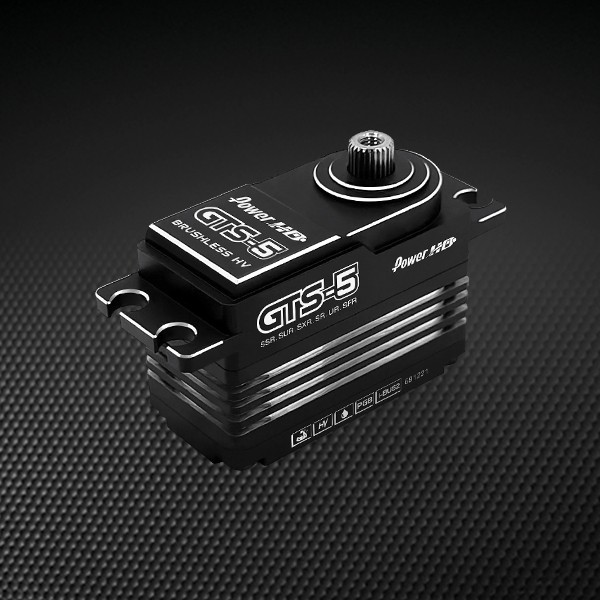

- Artikel-Nr.: HD-GTS-5
*Support FLYSKY radio's i-BUS2 protocol
servo parameter setup / data logging / warning / and other functions
*Support the high speed mode of brands' radio
Noble NB4 Pro modes: NOR / SR / SFR
Futaba modes: NOR / SR / UR
SANWA modes: NOR / SHR /SSR / SUR / SXR
*Support the Power HD program box PG-CB63
*four-pole brushless motor
high performance/ long Life-span/ heat-resistant/ faster response
Torque(7.4V): 42.0 kg-cm / (583.3 oz/in)
Torque(8.4V): 50.0 kg-cm / (694.4 oz/in)
Speed: 0.11 sec (6.0V) ©¦ 0.09 sec (7.4V)
Speed: 0.08 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 63 g (2.22 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Brushless Motor
Gear Type: 7075+Steel
Operating Temperature: -20~60°C
Working frequence: 1520 / 1666hz
Size: 41.0 x 20.0 x 29.0 mm ( 1.61 x 0.79 x 1.14 in)
Max current: 7.5A
Verantwortlicher nach GPSR / person responsible GPSR
Gruber-Racing
Thiergartner Weg 14
08527 Plauen, DE
www.gruber-racing.de
info@gruber-racing.de
Hersteller / Manufacturer
HuiDa RC International Limited
Room 4, 16/F, Ho King Commercial Centre, 2-16 Fayuen Street, Mongkok Kowloon, Hong Kong
CN
https://www.chd.hk/
info@chd.hk
|
|
ACHTUNG: Nicht für Kinder unter 36 Monaten geeignet wegen verschluckbarer Kleinteile, Erstickungsgefahr. due to small parts that can be swallowed, choking hazard. |
|
|
ACHTUNG: Nicht für Kinder unter 14 Jahren geeignet. Benutzung unter unmittelbarer Aufsicht von Erwachsenen. CAUTION: Not suitable for children under 14 years of age. Use under the direct supervision of adults. |
Sicherheitshinweise GHS / H-Sätze | Safety instructions / Hazard Statements
-
H 315: Verosol vermeiden.
(Avoid inhalation of dust / smoke / gas / mist / vapour / aerosol.)
-
P 271: Nur im Freien oder in gut belüfteten Räumen verwenden. (Only use outdoors or in well-ventilated rooms.)
-
P 280: Schutzhandschuhe / Schutzkleidung / Augenschrursacht Hautreizungen (Causes skin irritation)
-
H 319: Verursacht schwere Augenreizung (Causes severe eye irritation)
-
H 335: Kann die Atemwege reizen (May irritate the respiratory tract)
Sicherheitshinweise GHS / P-Sätze | Safety instructions / Precautionary Statements
-
P 102: Darf nicht in die Hände von Kindern gelangen. (Keep out of the reach of children.)
-
P 261: Einatmen von Staub / Rauch / Gas / Nebel / Dampf / Aeutz / Gesichtsschutz tragen. (Wear protective gloves /
protective clothing / eye protection / face protection.)
-
P 305+351+338: Bei Kontakt mit den Augen: Einige Minuten lang behutsam mit Wasser spülen.
Vorhandene Kontaktlinsen nach Möglichkeit entfernen. Weiter spülen (In case of contact with eyes:
Rinse cautiously with water for several minutes. Remove any contact lenses if possible. Continue rinsing)
-
P 312: Bei Unwohlsein Giftinformationszentrum oder Arzt anrufen. (If you feel unwell, call a poison information centre or doctor.)
-
P 405: Unter Verschluss aufbewahren. (Store under lock and key.)
-
P 501: Inhalt/Behälter … zuführen. (Feed contents/container ....)
Sicherheitshinweise / EUH | Safety instructions / EUH
-
EUH 202: Cyanacrylat. Gefahr. Klebt innerhalb von Sekunden Haut und Augenlider zusammen.
Darf nicht in die Hände von Kindern gelangen.
