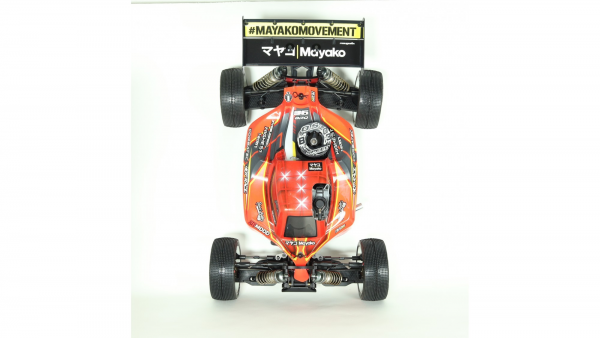

マヤコ Mayako MX8-25R 1:8 GP 4WD Nitro Buggy - Regional Kit

599,99 € * 624,99 € * (4% gespart)

inkl. MwSt. zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-2 Werktage

  • MYB0377-25R
Manual:  https://go.mayako.com/myb0377-24r-manual   EMPTY SETUP SHEET... mehr
Produktinformationen "マヤコ Mayako MX8-25R 1:8 GP 4WD Nitro Buggy - Regional Kit"

Manual:

https://go.mayako.com/myb0377-24r-manual



EMPTY SETUP SHEET

MAYAKO MX8E-24 Setup Sheet Version 1.1



This kit is normally only for members. This is a rare chance to get the highest spec Mayako Buggy without a membership.

2025 Regional Kit Spec:

  • F8 Chassis - Laser Engraved
  • Upper Links
  • 6x1.3 Pistons
  • Alu Towers (Long Link Rear)
  • Short Front Shock Shafts
  • Hard: 2.4/2.6 Roll Bars, Black Regular Springs
  • Front CVD
  • Rear 91mm Universal
  • Centre Universals
  • 45/14 Gearing
  • KPI1-Caster2
  • C-Hub With Insert, Knuckle With Red Ring, Universal Compatible
  • Black Wing
  • Screwtype Hingpin Design



The MX8 was designed to be stable, simple and easy. Each component is located where it is for a reason, with room to flex, room for cooling air, and space to inspect, work on and clean each area of the car. The electronics can be removed from either above or below, or a combination depending on your preference. There are optional longer engine and throttle servo mounts to adjust flex symmetrically. If you question the width and shape of the chassis now, you won't after you have taken a lap with the Mayako on a tough fast track.







DESIGN

STABLE, SIMPLE & EASY

The MX8 was designed to be stable, simple and easy.

Each component is located where it is for a reason, with room to flex, room for cooling air, and space to inspect, work on and clean each area of the car.

The electronics can be removed from either above or below, or a combination depending on your preference.

There are optional shorter engine and throttle servo mounts to adjust flex symmetrically.

If you question the width and shape of the chassis now, you won’t after you have taken a lap with the Mayako on a tough fast track due to the increased stability.







FRONT SUSPENSION

BETTER GENERAL HANDLING

The MX8 comes with the more stable KPI-1, for your typical Pillow Ball front end feel.

There are optional KPI-.5 hubs and knuckles available for more aggressive steering response, more like a typical C-hub car feel.

Not only that, you can also adjust knuckle height, upper link/arm length, and steering link position, thanks to the red eccentric bushing in the carbon steering plate, which you can also replace with an optional one, of course.

You need to be able to adjust all the relevant adjustments when looking for the last 10ths of a second, regardless of which overall feel you prefer.







DURABILITY BY DESIGN

DURABILITY AS PRIORITY

The MX8 has captured screw type hinge pins, which sandwich the arms and arm holders with a M4 Screw and nut, helping to strengthen the suspension.

This also makes working on the car a lot easier, as you can remove and arm by simply removing the hinge pin, or you can remove the diff, or entire gearbox, while keeping the arms and holder intact.

The MX8 comes standard with a fixed height A-Block for maximum strength. There is an option part which allows for diff height adjustment, to fine tune your car.

The stock setting is low diff, 0 diff shims, which provides the smoothest and calmest steering response.

Additionally there are steel skidplates front and rear, which significantly extend the lifetime of the chassis.





STEERING SERVO

FLOATING SERVO MOUNT

The steering servo can be removed by just two M4 screws, from it’s floating mount.

For different height servos you simply space the triangular mounts higher as required.

The MX8 also comes with the option of running the lightweight servo saver eliminator, which is the preferred way of running the car with today’s all metal gear strong servos.







THROTTLE AND BRAKE

VERY SIMPLE SETUP

The throttle and brake linkage on the MX8 is very simple, with only 1 link for brake.

The brake bias is easily adjustable by turning one of the two knurled adjusters by hand. This is something that can be done without any tools, or even removing the body.

The throttle link comes with a button head screw instead of a grub screw for the collet, so you can use a rubber band fail safe in the event you were to lose power.







BUMP STEER

POWERFUL TUNING AID

Bump steer is a powerful tuning aid, specially when running the KPI-1 hubs.

It can be adjusted at both inner and outer ends of the steering link, turning around the eccentric ball, or adding/removing shims.

Adding just a 1mm shim can increase steering mid to exit of corners significantly.







SHOCKS

BLADDERS OR EMULSION

The shocks on the MX8 are hard coated, with silky smooth operation, and come standard with an emulsion gasket and bleeder screw in the cap.

Bladders can be fitted in the caps if preferred, but we recommend the emulsion setting for every condition.
